Introduction

Figure 1: Atomic oxygen scattering ultraviolet sunlight in the upper atmosphere of Mars, imaged by MAVEN’s Imaging Ultraviolet Spectrograph. Atomic oxygen is produced by the breakdown of carbon dioxide and water. Most oxygen is trapped near the planet, (indicated with a red circle) but some extends high above the planet and shows that that Mars is losing the gas to space.

Figure 1: Photograph from NASA's MAVEN satellite showing atomic oxygen leaking from the atmosphere of Mars. (Source)

I have always been interested in the fact that some planets have atmospheres and others do not. At the time of formation, planets have a primary atmosphere that consists largely of light elements (hydrogen and helium) – Earth now has a secondary atmosphere formed outgassing from tectonic activity and comet impact residue. For small bodies, these low-molecular weight elements escape into space. I had never looked at how these gases escaped until I recently found a Wikipedia article about how gases escape from planetary atmospheres (e.g. Figure 1), and the math and physics involved were too enticing to pass up.

There are actually a number of mechanisms by which gases can leave a planet's atmosphere, including:

This post will focus on Jeans escape, a mechanism that depends on fraction of gas molecules at sufficiently high temperatures having enough velocity to escape a planet's gravitational field. While Jeans escape is not a major source of atmospheric loss for Earth, it is an important factor for smaller worlds like the moon and Mars.

My Mathcad source and its PDF are here.

Background

Objective

I saw Figure 2 on this Quora post and I decided to learn about the meaning of this plot by regenerating it using Mathcad.

Figure 2: Interesting Graph that I Will Duplicate. (Source)

Figure 2: Interesting Graph that I Will Duplicate. (Source)

Definitions

Figure 2: Photo from NASA's DISCOVR Satellite Showing Hydrogen Leakage in Red Around the Earth. (Source)

Figure 3: NASA Photo Showing Hydrogen Leakage in Red Around the Earth. (Source)

Jeans Escape
Particles (molecules or atom) with a speed greater than a planet's escape velocity can escape from the planet assuming the particle is not slowed down by impacting another particle. (Reference)
Exosphere
A thin, atmosphere-like volume surrounding a planet or natural satellite where molecules are gravitationally bound to that body, but where the density is too low for them to behave as a gas by colliding with each other. Figure 3 shows a good example of the Earth's exosphere as measured by a NASA satellite. (Source)
Exobase
The altitude at which upward-traveling molecules experience one collision on average. Molecules at the exobase altitude or higher are unlikely to encounter other molecules – those exobase molecules at the high-spend end of their velocity distributions will have an opportunity to escape from the planet. (Reference)
Escape Velocity
The minimum speed needed for an object to "break free" from the gravitational attraction of a massive body. (Source)
Maxwell–Boltzmann distribution
The statistical distribution that describes the velocity profile of molecules or atoms in a gas. (Source)

Average Molecular Speed

The average speed of a molecule is given by Equation 1 (Source).

Eq. 1 \displaystyle {{\bar{v}}_{{gas}}}=\sqrt{{\frac{{8\cdot R\cdot {{T}}}}{{\pi \cdot MW}}}}

where

  • \bar{v}_{gas} is the mean velocity of a gas molecule.
  • R is universal gas constant constant.
  • MW is the molecular weight of the gas.
  • T is the exobase temperature of gas (absolute). I should point out that I found conflicting information on exobase temperatures, which I document here.

Escape Velocity

We can calculate the escape velocity from a planet using Equation 2 to determine when gas leakage will be significant on long time scales (Source).

Eq. 2 \displaystyle {{v}_{e}}=\sqrt{{\frac{{2\cdot G\cdot M}}{R}}}

where

  • M is the mass of the planet.
  • R is the radius of the planet.
  • G is universal gravitational constant.
  • ve is the escape velocity from the planet.

Analysis

An Escape Velocity Rule of Thumb

Many analyses of the planetary gas leakage make use of the following rule of thumb (Source).

Calculations show that if the escape velocity of a planet exceeds the average speed of a given type of molecule by a factor of 6 or more, then these molecules will not have escaped in significant amounts during the lifetime of the solar system.

Calculations

Setup

Figures 4(a) and 4(b) show how I setup my calculation.

Setup Analysis

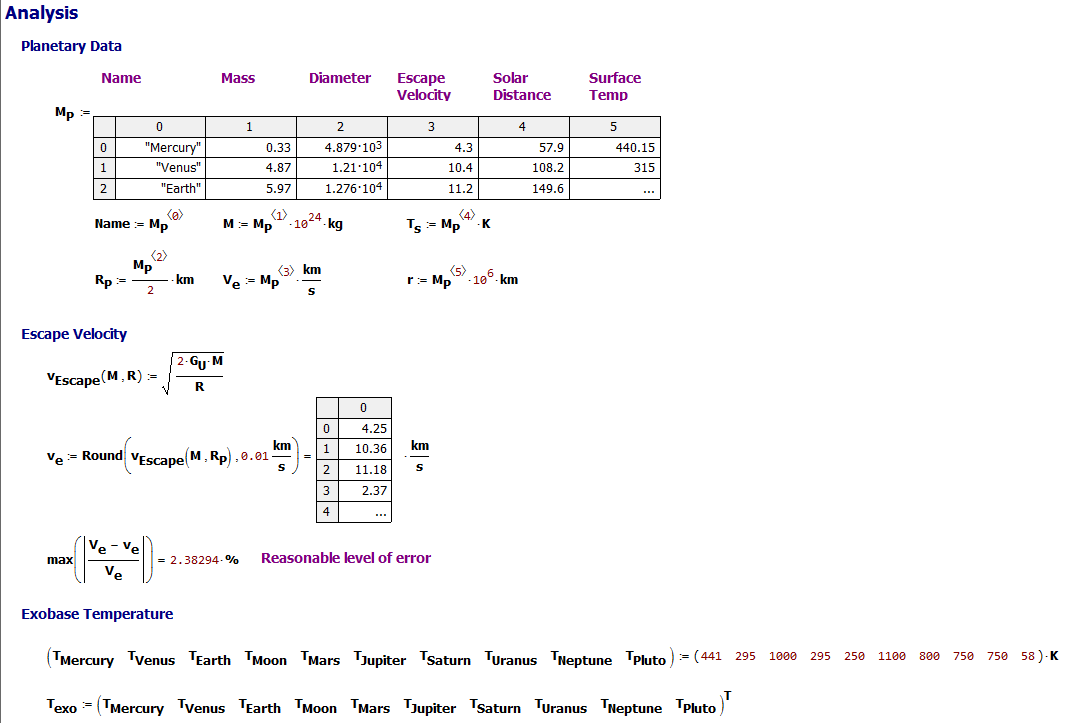

Figure 4 (a): Calculation Setup. Figure 4(b): Load in Planet Data.

Modeling

Figure 5 shows how I plotted my data in Mathcad. I am not happy with this plot because it does not look as clear as I would like. As an alternative, I plotted the data (Figure 6) using a presentation-grade graphics package.

MathcadPlot
Figure 5: Plot of the Escape Velocity and the Planetary Escape Velocities ÷ 6.

Graphic View

Figure 6 is a plot I made using the same data as in Mathcad but with the scientific plotting package called Originlab.

Figure 6: Gas Molecular Velocities Versus Planetary Escape Velocities.

Figure 6: Gas Molecular Velocities Versus Planetary Escape Velocities ÷ 6.

Figure 6 tells us that

  • The terrestrial planets (Mercury, Venus, Earth, and Mars) do not have sufficient gravity to retain large amounts of hydrogen and helium.
  • The gas and ice giants (Jupiter, Saturn, Uranus, and Neptune) have sufficient gravity to retain hydrogen and helium.
  • The moon is large enough that it could retain some CO2, but in fact its atmosphere is almost nonexistent. This is because other mechanisms (e.g. solar radiation pressure) drove away what little gas was there.

Conclusion

I have always wondered why hydrogen and helium have leaked away from the Earth's atmosphere, but oxygen, nitrogen, and carbon dioxide have remained. This plot shows me that the Earth is massive enough to retain these gases, but not massive enough to retain hydrogen and helium.

Of course, other factors also play a role. For example, the Earth has a magnetic field that prevents our atmosphere from being eroded away by the solar wind. Mars is smaller than the Earth and has no magnetic field. This means that gases will be driven off by the solar wind.

To show how complex this issue is, Venus is closer to the Sun than the Earth and has a much smaller geomagnetic field than the Earth. However, it has retained an enormous amount of carbon dioxide in its atmosphere and has developed an induced magnetic field in its ionosphere that helps minimize the impact of atmospheric erosion by the solar wind.

 Appendix A: Planetary Exobase Temperatures.

The following tables contain the exobase temperatures for the planet's of our solar system. Note that I found conflicting data for the the exobase temperatures of Mercury, Venus, and Jupiter. I chose to use this data for consistency.

Figure 1: Basic Atmospheric Parameters for the Giant Planets. (Source)

Figure 6: Basic Atmospheric Parameters for the Giant Planets. (Source)

Figure M: Basic Atmospheric Parameters for Venus, Earth, Marse, Titan. (Source)

Figure 7: Basic Atmospheric Parameters for Venus, Earth, Mars, Titan. (Source)

Figure M: Basic Atmospheric Parameters for Mercury, the Moon, Triton, and Pluto. (Source)

Figure 8: Basic Atmospheric Parameters for Mercury, the Moon, Triton, and Pluto. (Source)

 Appendix B: Conflicting Versions of Figure 6.

Figure 9 shows another common form of my Figure 6. Notice that the x-axis is reversed and Jupiter, Saturn, Neptune, and Uranus have different exobase temperatures than in my Figure 6.

Figure M: Similar Example with Contradictory Information.

Figure 9: Similar Example with Contradictory Information (Source).

The Wikipedia also has a chart (Figure 10) based on data similar to that of Figure 9. I like the style of this graphic.

Figure 10: Wikipedia Version of My Figure 6.

Figure 10: Wikipedia Version of My Figure 6.
